- ☑【Fast Speed】The speed of the motor wheel can be up to 55km/h (180446ft/h), which is very fast and can give you a good riding experience.
- ☑【LCD Function】The LCD meter has the function of fault display, speed display, mileage display, voltage display, five-speed booster speed control, and fixed speed cruise. It is very convenient for you to use.
- ☑【Versatile Highlights】This product has five adjustable gears and also has a fixed speed cruise function. It can bring you an unprecedented riding experience.
- ☑【Application】It is suitable for retrofitting the rear wheel of a two-wheeled snow bike. It is suitable for 26-inch snow bikes with 26*4.0 tires. It is suitable for the rear wheel of a two-wheeled snow bike. It cannot be used for three-wheelers or multi-wheelers.
- ☑【Easy to Install】The structure of the product is simple and the accessories are complete. You only need a few simple steps to install it, which is very simple and convenient.
Specification:
Color: Black
Material: Aluminum， Iron， Copper， Magnet Steel
Voltage: 48V
Power: 1500w
Power Source: DC
Meter Type: LCD
Power Type: Lead-acid or Lithium Battery (Not Included)
Installation Position: Rear
Motor Type: Brushless and Gearless 205 Series Hub Motor
Motor Net Weight: 7kg/15.43lbs
Motor Net Weight (with Variable Speed Gear and Disc Brake Rotor Type):7-7.5kg/15.43-16.53lbs
Motor Diameter: 24.3cm/9.56inch
Motor Shaft Diameter: M14
Motor Shaft Length: 24cm/9.44inch
Motor Cable Length: 100cm/39.37inch
Number of Sensors: 3
Rated Speed: 500rpm
Rated Torque: 55nm
Body Size of Magnet: 13.65*3*35mm/5.37*1.18*13.77inch
Number of Magnets: 46
Flat Fork Width Requirement: Min.17cm/6.69inch
Brake: Disc Brake Rotor Type Can be Installed 6 Screws
Braking Method: Disc Type
Corresponding Controller: 48V 1500w Controller
Available Aluminum Wheel Size: Suitable for 26-inch Snow Bike 26*4.0 Tires
Instrument Function: Fault Display， Speed Display， Mileage Display， Voltage Display， Five-speed Power Steering， Fixed-speed Cruise Control
Efficiency: ≥82%
Motor Wheel Speed: Max 55km/h (180446ft/h) (Speed is Related to Wheel Size， Road Condition， Battery Condition， Guest Load， Wind Speed， and Other Factors)
Net Weight: 11.5kg/25.3lbs
Gross Weight: 13.7kg/30.2lbs
Wheel Diameter: 57.3cm/22.56inch
Wheel Width: 24cm/9.45inch
Package Size: 61*61*28cm/24*24*11inch

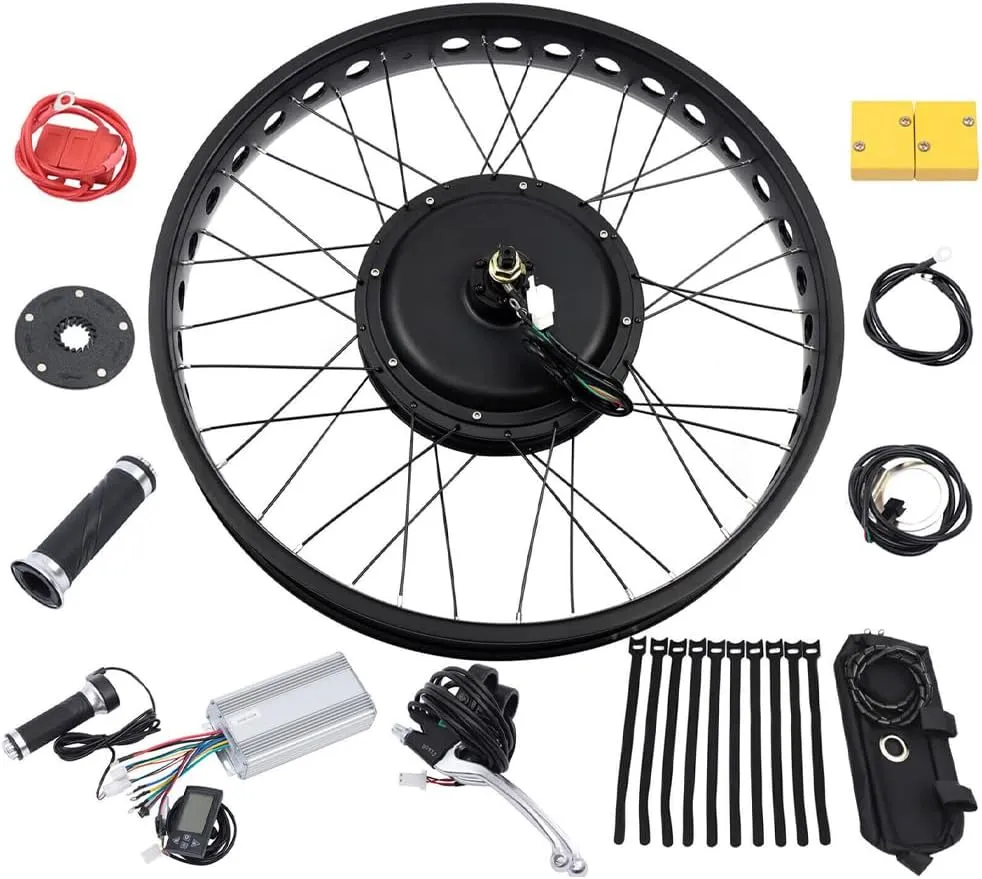

Package Included:
1* Rear Motor Wheel
1* Turner
1* Controller
1* LCD Meter
1* Brake Handle
1* Turnbuckle Cover
1 Set* Cables
1 Set* Pedal Assistant Sensors
2* Wiring Boxes
10* Tie Stickers
1* Controller Bag
1* English Manual
Note：
Please consult customer service for relevant usage instructions and precautions.
