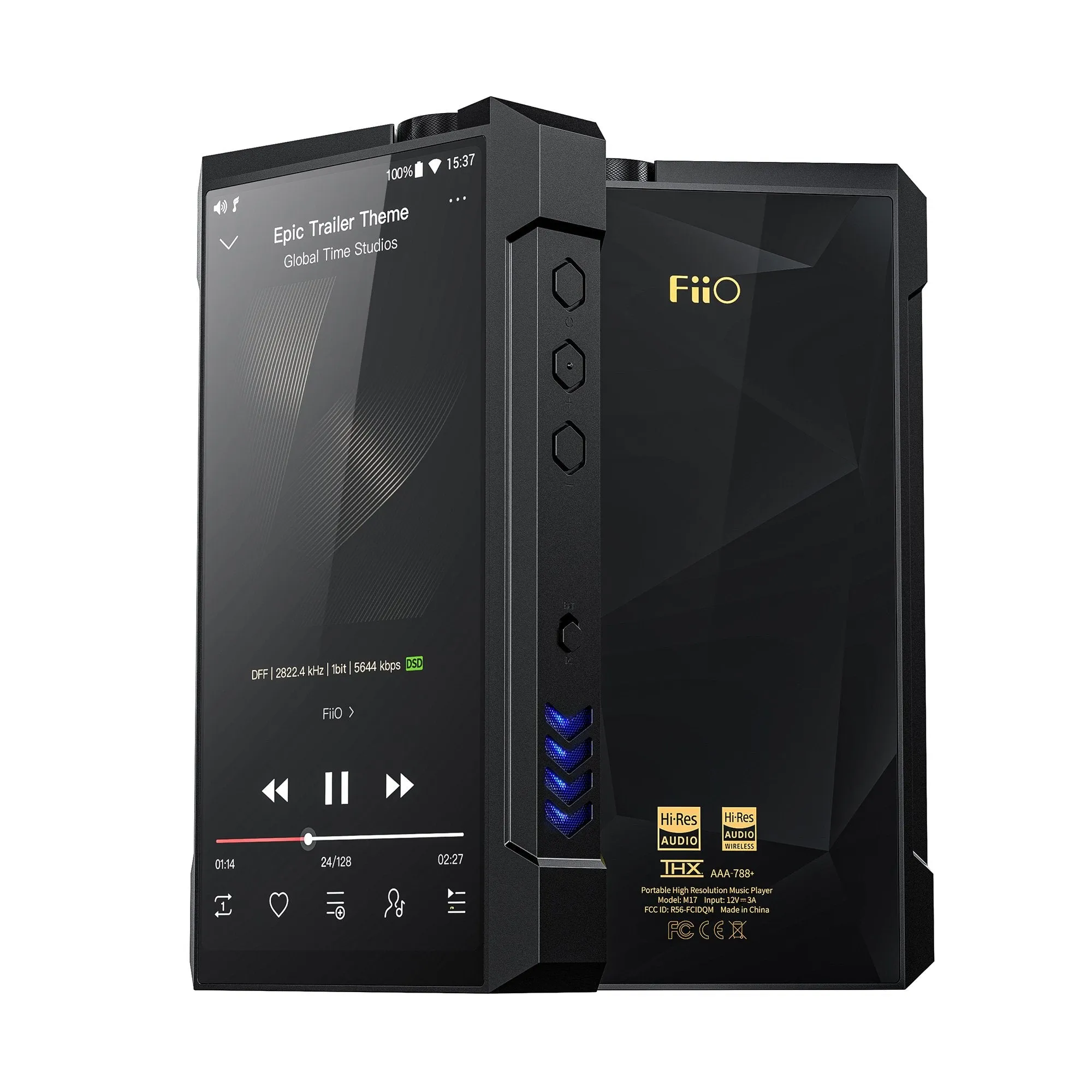

Redefining portable expectations

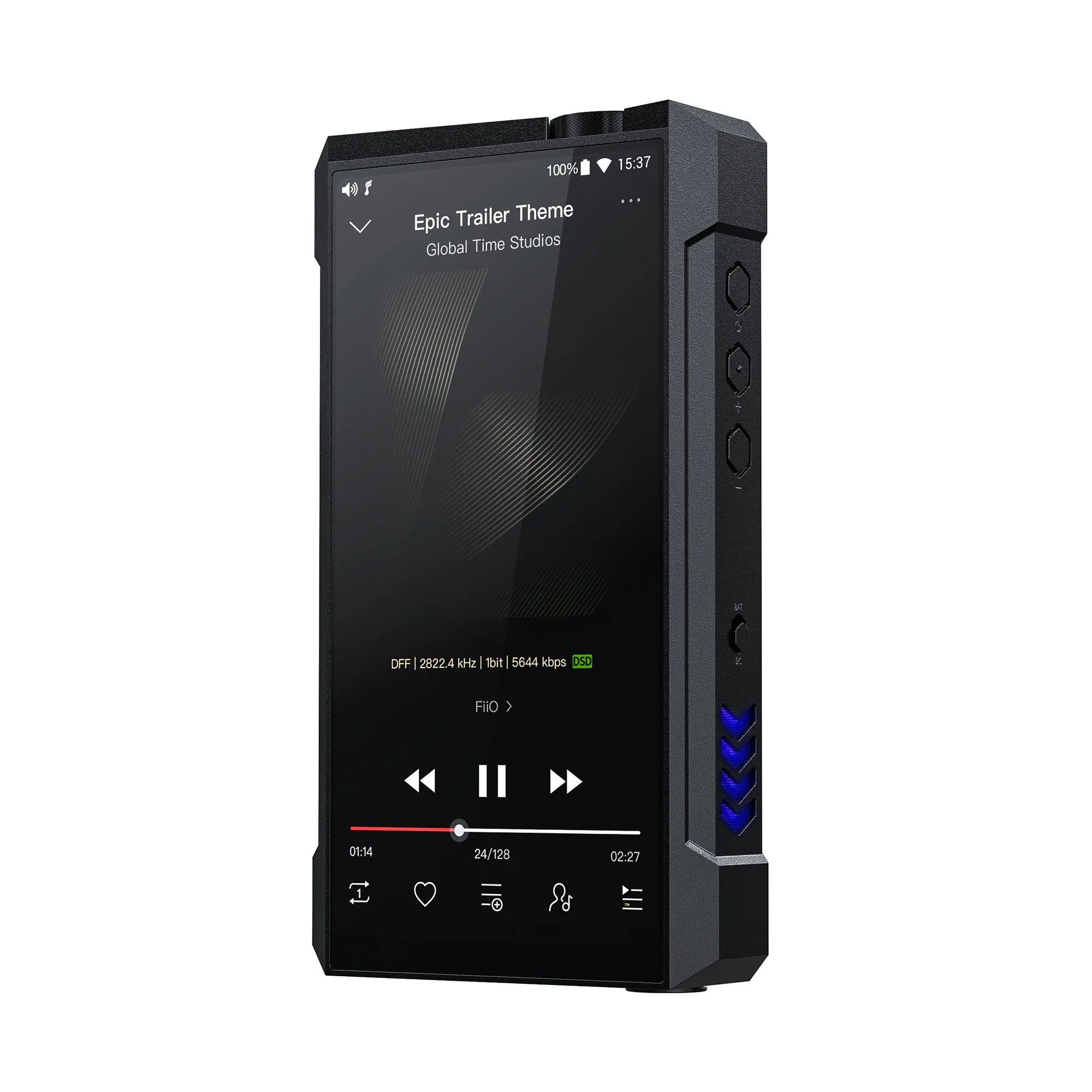

The smart desktop-class M17 is an entirely new chapter of FiiO digital audio players. It's desktop-grade DAC, amplification, power supply, etc. give it the output power and sound quality to rival and perhaps even surpass highly-regarded desktop systems, but in a portable package. Let the M17 redefine what is possible with portable audio players.
Desktop-league DAC ES9038PRO
The left and right audio channels each contain a desktop-class, 8-channel ES9038PRO flagship DAC. This means that each audio channel has 8 parallel outputs summed together for superior resolution and minimal distortion for extremely pure audio reproduction.
Desktop-class THX 788 headphone amp
Desktop-class amplification also plays an important role in the M17. FiiO and THX jointly developed the exclusive THX AAA-788 , an upgraded version of the original op-amp. Compared to the original, output power is increased by 225% up to 3000mW per channel with a lower output impedance, allowing it more effortlessly power all kinds of headphones.
Desktop-grade gain
Under battery power, there are 4 gain levels: low, medium, high, and headphone mode. When under DC mode, the super headphone mode gain is unlocked, with a truly desktop level of amplification gain. In balanced output, gain can get as high as 16dB, allowing the M17 to easily drive most headphones.

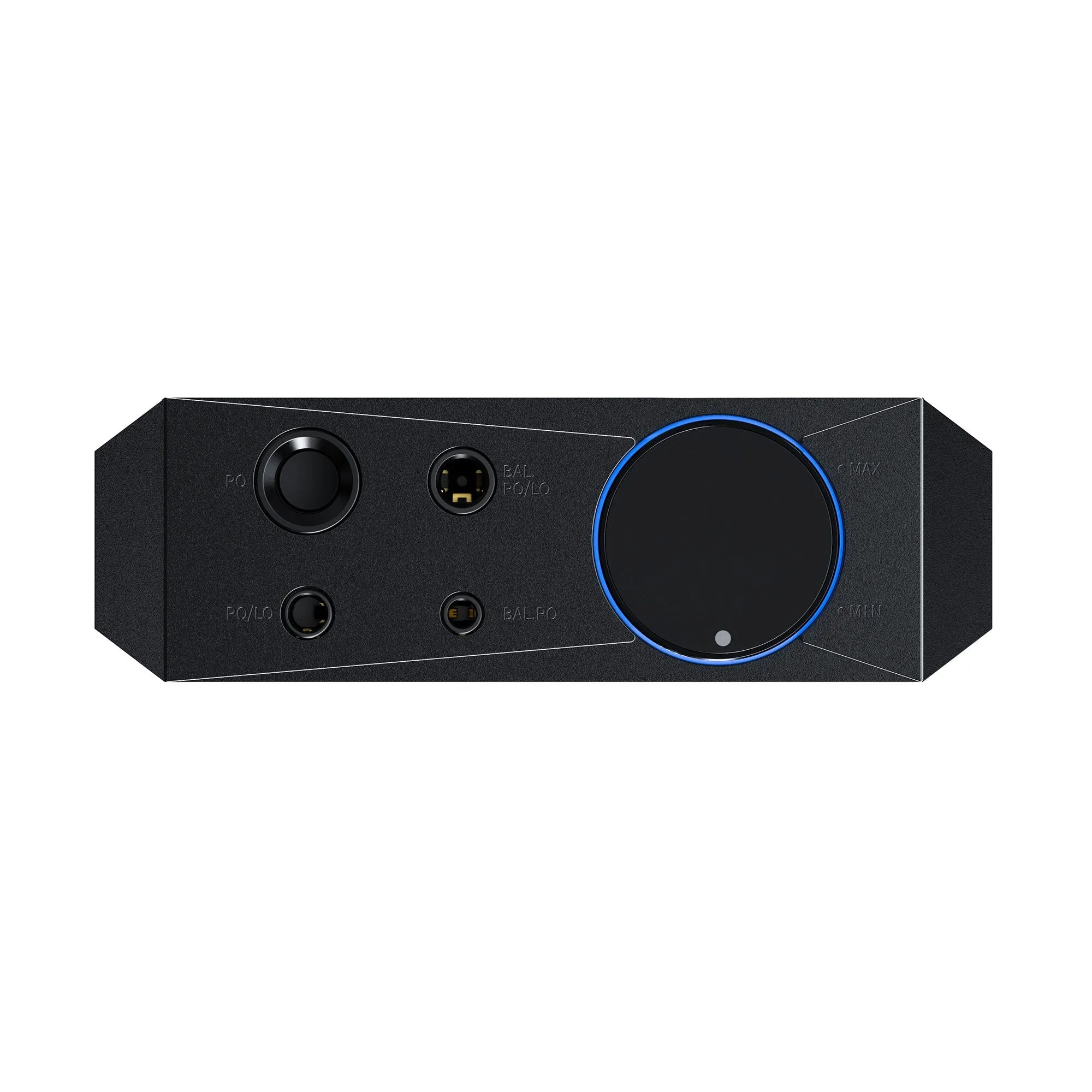

Desktop-level connectivity
Thanks to its larger size, the M17 features a variety of connectivity options allowing for many different convenient use cases:
• 3.5mm output: headphone out/line out
• 6.3mm output: headphone out
• 2.5mm output: balanced headphone out
• 4.4mm output: balanced headphone out/balanced line out
• RCA coaxial port: coaxial input and output
• USB 3.0 port: supports USB Host and Device modes, can be used for high-speed data transfers and fast charging
• USB 2.0 port: supports USB Host mode, allowing external DACs
Desktop-quality power supply
The M17 contains two power supplies, a battery power suppyl and a power supply powered by external DC power. The battery power supply allows you to use the M17 in situations where there is no access to a power outlet. Under DC power supply, voltage in the analogue circuit is increased by 35% up to 11.5V compared to under battery power supply; and the battery is kept healthy since it is not used in this mode.
Desktop-tier heat dissipation
With exceptional audio quality comes large power consumption, so effective heat dissipation was a large focus when designing the M17. Not only are "H" type heat dissipation and VC liquid cooling technologies adopted, the M17's 151g unibody aluminium alloy frame also effectively transfers heat out of the device. Finally, the cooling fan stand also further makes sure heat is rapidly transported away.
Physical digital-analogue separation for reduced interference
Within the M17 and 17 PCBs with immersion gold finish, with the analogue and digital sections physically separated by being on two different boards to reduce interference between the two portions. 7 high-conductivity copper alloy shields also provide shielding to greatly reduce internal and external electromagnetic interference on analogue audio signals within the M17.
Highly-optimised modular internal structure
The M17's design took 1.5 years to complete, going through 6 major design iterations with 12 rounds of internal structural design optimisation. The result is a device that makes excellent use of its internal space. Within the M17 are carefully stacked analogue and digital boards with thoughtful use of stainless-steel hexagons, which allowed FiiO to stuff nearly twice the surface area of PCBs compared to normal in such as limited space.

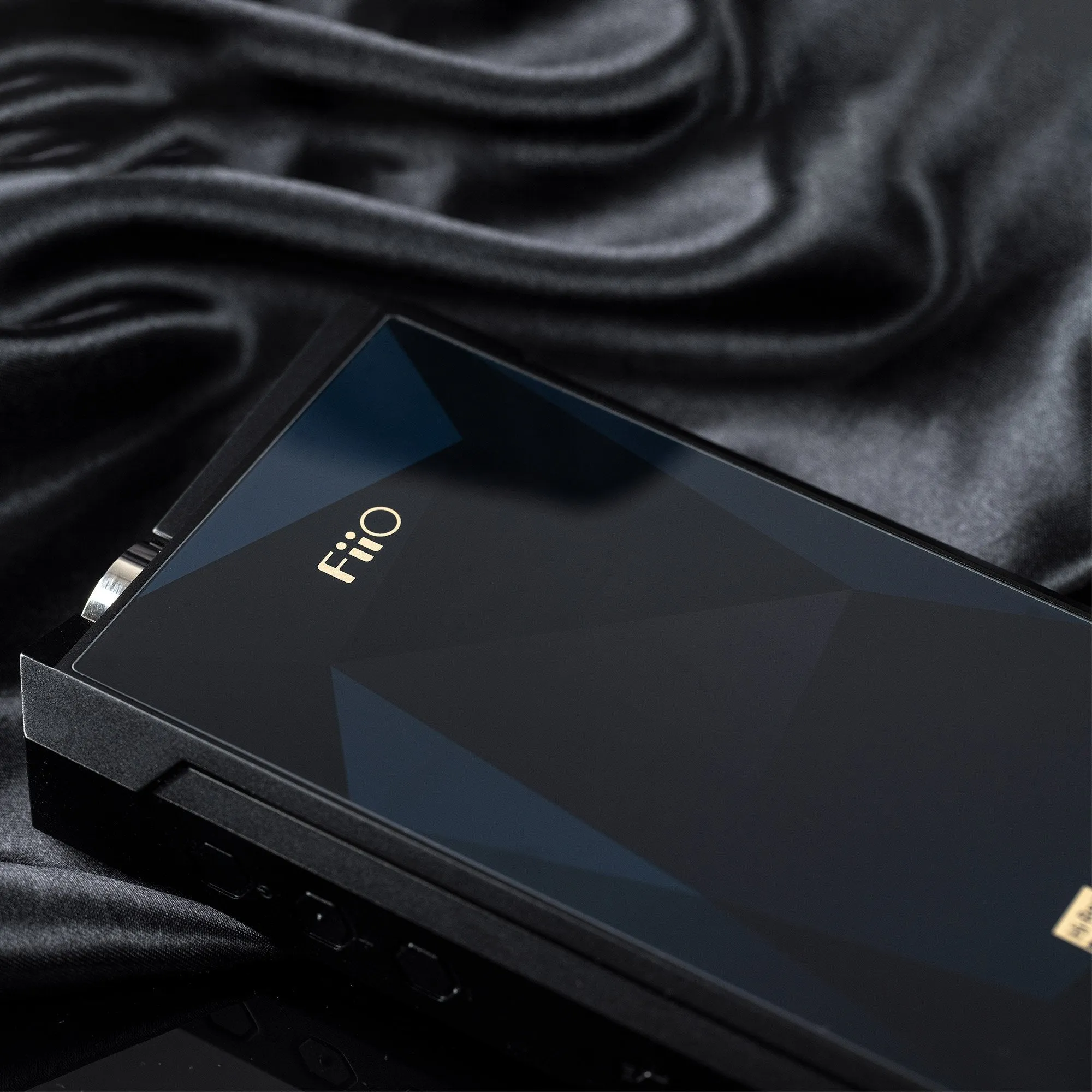

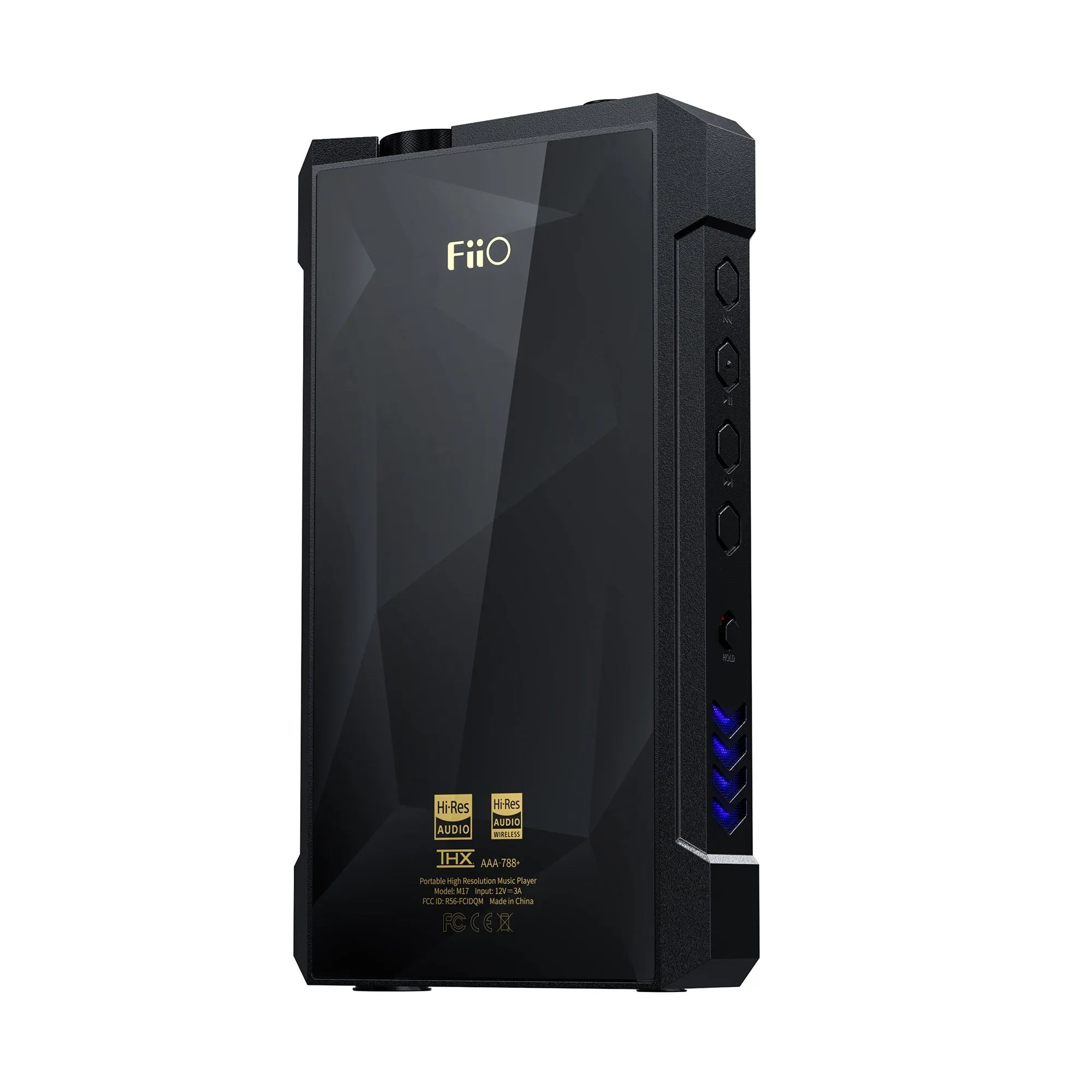

7th-gen mech design
The futuristic, seamless, CNC-finished aluminium unibody design evokes a sense of technological wonder. The mech-inspired sharp lines of the body, buttons, and atmospheric lights give the M17 a bold and charismatic aura.
Press or twist to enjoy
The volume can be adjusted either using an analogue potentiometer knob or using buttons. Quickly and easily go through 120 levels of volume through either method.
Radiant RGB ambient light
The M17 features a seven-colour RGB ambient light system with extensive customisation options. Colours can be set to be either fixed, to follow the audio, or to follow a cycle. The brightness of the ambient light can be set to change depending on the current power, volume, or temperature. And finally, the top and side ambient lights can even be controlled separately, allowing you to dial in exactly how you want your dazzling lights to be.

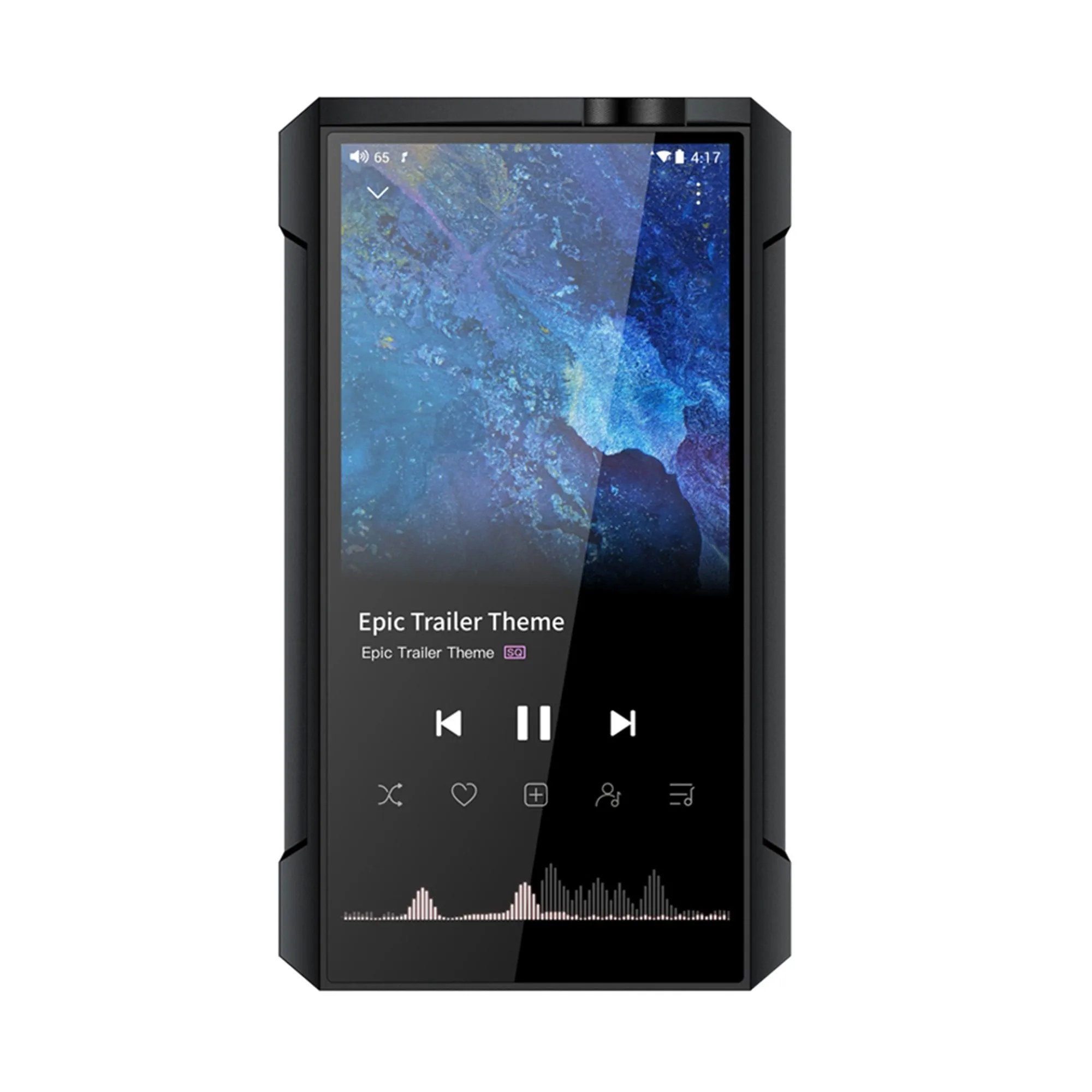

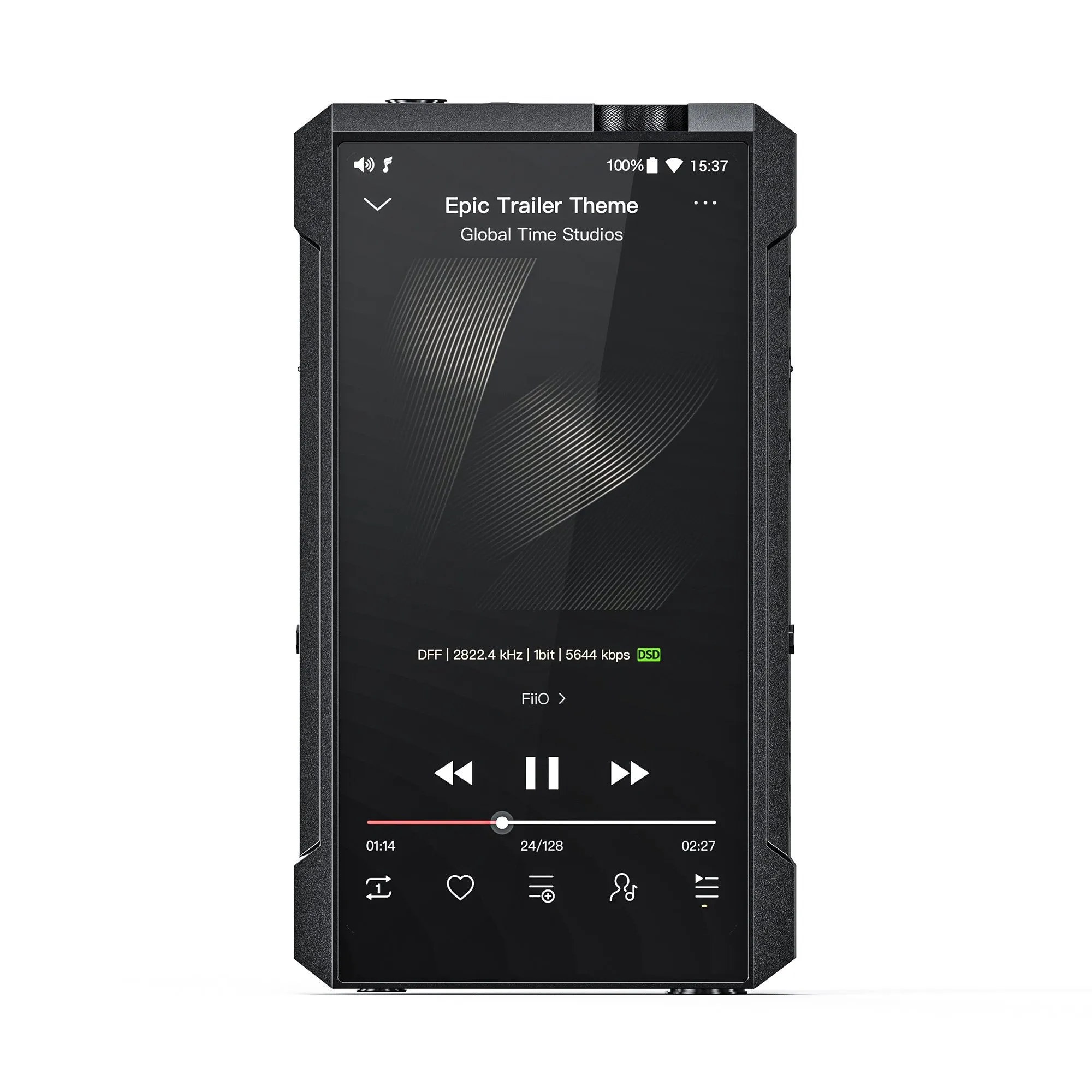

Bigger screen for brighter sheen
A larger screen allows you to more easily enjoy stunning visuals. Let your eyes feast upon an upgraded 5.99 inch, 1080*2160 FHD 18:9 high-definition incell display.
Immense 9200mAh battery
The massive 9200mAh battery allows for a battery life up to 10 hours on the M17. It can be charged either through USB or through DC in from an external AC adapter.
• Battery capacity: 9200mAh | Charging time: 4.5hours | Charging protocols: QC4.0 PD
• Battery life: 10 hours (single-ended), 8 hours (balanced)
