- 【Portable Mini Charger】 Don't let its small size fool you - this charger packs a punch! When powered by DC, this compact and shiny power supply delivers a whopping 200W of charging power with a maximum current of 10A. Even when connected to a snazzy Type-C PD power supply, it can effortlessly fill up to 80W.
- 【Easy Battery Checker】When connected to the balance port, the B6neo is a versatile battery checker capable of measuring the battery voltage and balance status of Li-Polymer, Li-HV, LiFePO4 and Li-Ion batteries. The overall voltage and individual cell voltages will be displayed on the fly to help determine if the battery is charged or discharged and if it needs to be balanced.
- 【XT60 and PD Interface】 B6 neo uses the XT60 interface as its DC input and the de facto trendy Type-C PD input interface to ensure greater flexibility and convenience when charging your RC batteries.
- 【Discharging Multiplied by Balance Port】The built-in balance port enables B6neo to discharge faster, allowing it to discharge at up to 24W when used in conjunction with the main port. In contrast, the discharge rate when using the main port alone is limited to just 10W.
- The B6 neo is not only professional in terms of charging, but it also acts as a digital power supply. With a click on the menu, the B6 neo is ready for your application, offering optimal voltages from 5-27V in 0.1V increments and adjustable currents from 1-10A!

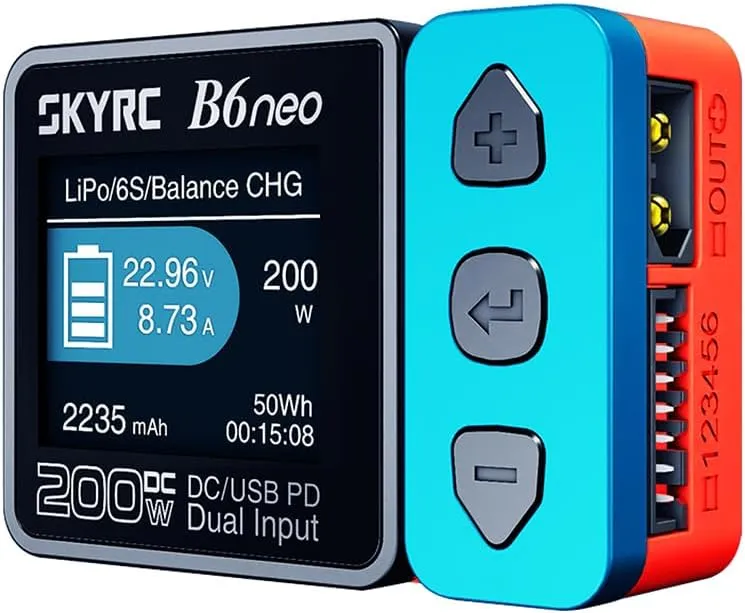

2023 SKY RC B6neo Smart Charger DC 200W PD 80W Battery Balance Charger SK-100198 Lipo Battery Charger B6 neo
Feature:
1.Amazing Power of 200W: When powered by DC, the tiny and shiny powerhouse delivers a remarkable charging power of up to 200W with a maximum current of 10A. Even when connected to the trendy type-C PD power, it effortlessly fills up to 80W.
2.Small Size: Almost 1/4 the size of its predecessor, smaller than credit card, B6neo still packs a powerful punch. Unlike the rugged aluminum case of the B6, the B6neo features stunning color schemes in sleek plastic cases.
3.SKY RC B6neo features an XT60 interface as its DC input and a de-facto trendy Type-C PD input interface, ensuring greater flexibility and convenience in charging your RC batteries.
4.Discharging Multiplied by Balance Port The built-in balance port enables B6neo to discharge faster, allowing it to discharge at up to 24W when used in conjunction with the main port. In contrast, the discharge rate when using the main port alone is limited to just 10W.
5.Enhanced ProtectionAssured Safety The SKY RC B6neo charger is built-in with several essential safety features ensuring optimal charging safety.
Specifications:
Product name: B6neo
Product NO.: SK-100198
Display
Display Type: Color-X
Power
DC Input: 10-28.0V
PD3.0/QC Input: 12V-20V
Discharge Wattage: Max. 24W based on 6S(4.2V/S)
DC: 200W
PD: Max. 80W (20V, 5A)
Battery
LiPo/LiFe/LiIon/LiHV: 1-6cells
NiMH/NiCd: 1-15cells
Pb: 3S/6S
Charge Current:
LiPo/LiFe/LiIon/LiHV/NiMH/NiCd/Pb：0.1-20.0A
Discharge Current:
LiPo/LiFe/LiIon/LiHV/NiMH/NiCd/Pb：0.1-2.0A
Balance Current:
LiPo/LiFe/LiIon/LiHV: Max. 500mA
Shell material: ABS
Size: 70*50*32mm
Weight: 82g
Package included:
