AVMATRIX PVS0615U 15.6 Inch Portable 6 CH Multi-Format Streaming Switcher with USB Capture For Streaming and T-Bar Transition Uncompressed capture for live streaming, comply with UVC & UAC Portable All-In-One design with 15.6 inch FHD LCD display for multiview 6 channel inputs: 4×SDI and 2×HDMI/ DVI-I/ VGA/ USB 1×USB type-C out, 3×SDI PGM/ AUX out 2×HDMI PGM & 1×HDMI multiview out Multiformat input auto-detected and PGM/AUX output format selectable T-Bar/ AUTO/ CUT transitions and MIX/ FADE/ WIPE effects Luma Key/ Chroma Key/ Recordder/ Audio mixer: TRS audio & SDI, HDMI, USB embedded audio

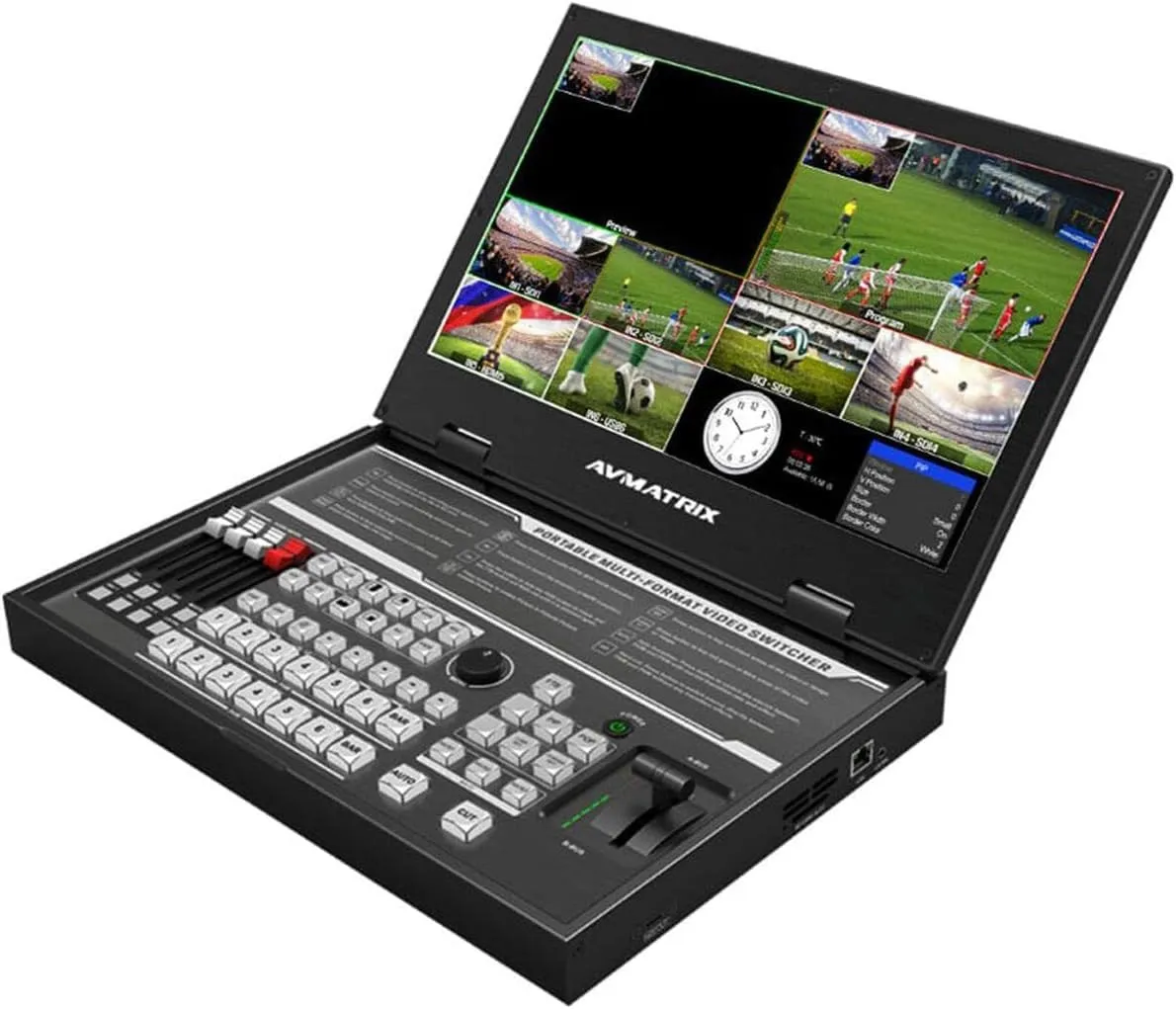

Thin compact all-in-one 6-Channel Video Switcher with built-in 15.6′ FHD LCD monitor. Switch up to six different video inputs while recording the program feed. The multiview layout allows you to show preview, program, and input sources all on the same screen, PIP and POP screen positioning is adjustable.
Four SDI, two HDMI, two VGA/DVI, and two USB inputs can be connected to cameras or other consumer or professional sources for switching up to 4K60 video over HDMI with embedded TRS audio. The input format will be auto-detected by the switcher, and the output format is selectable by the user. Connect the PGM out with a Kiloview E2 encoder and you are ready to stream live to any streaming service.
Concert productions, events, parties, competitions, virtual studio, and educational institutions, and live sports programming are some of the few use cases where the PVS0615U could be useful. When it’s time to wrap production, close the 15.6″ screen, unplug the video sources, and transport or store in its flat, portable state.
Features Uncompressed capture for live streaming, comply with UVC & UAC Portable All-In-One design with 15.6 inch FHD LCD display for multiview 6 channel inputs: 4×SDI and 2×HDMI/ DVI-I/ VGA/ USB 1×USB type-C out, 3×SDI PGM/ AUX out 2×HDMI PGM & 1×HDMI multiview out Multiformat input auto-detected and PGM/AUX output format selectable T-Bar/ AUTO/
