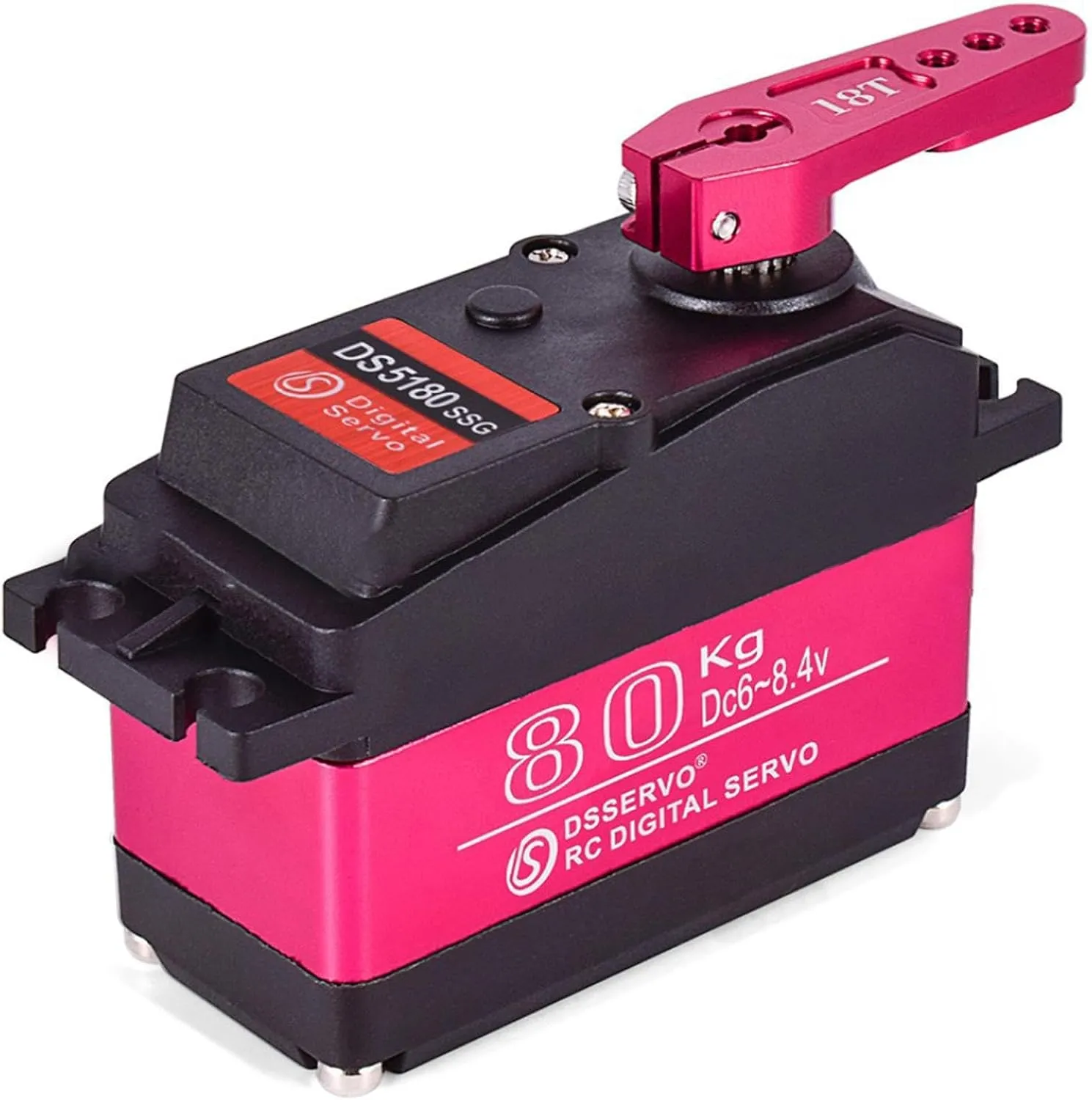

- Extremely capable and high quality waterproof servo with 80Kg of torque suitable for 1/5 scale RC cars that require large servos. Also suitable for DIY projects like Robots.
- High performance digital standard servo.
- High precision Stainless Steel gears.
- CNC aluminium middle shell with o'ring sealed top and lower cases.
- Dual ball bearings.
Features:
Extremely capable and high quality waterproof servo with 80Kg of torque suitable for 1/5 scale RC cars that require large servos. Also suitable for DIY projects like Robots.
High performance digital standard servo.
High precision Stainless Steel gears.
CNC aluminium middle shell with o'ring sealed top and lower cases.
Dual ball bearings.
Important Note:
This servo is 180° capable but needs the required signal to do it. When installed in a normal RC car it will typically do the normal 60° that the receiver commands so it's suitable to RC cars but also robot arms for example that require the 180° of actuation and that can provide the suitable signal (PWM 500～2500μsec).
Specifications:
Dead Band: 3μsec
Operating Voltage: 6V~8.4Volts
Operating Speed (6V): 0.19sec / 60° at no load
Operating Speed (7.4V): 0.17sec / 60° at no load
Operating Speed (8.4V): 0.15sec / 60° at no load
Stall Torque (6V): 70kg/cm
Stall Torque (7.4V): 80kg/cm
Stall Torque (8.4V): 85kg/cm
Operating Angle: 180°
Motor Type: High speed motor
Gear Type: Copper & Aluminum
Working Frequency: 50-330Hz
Size(excluded cable): 65*30*56.8mm
Package includes:
1* 80KG Digital Servo
1* 18T Servo Arm
